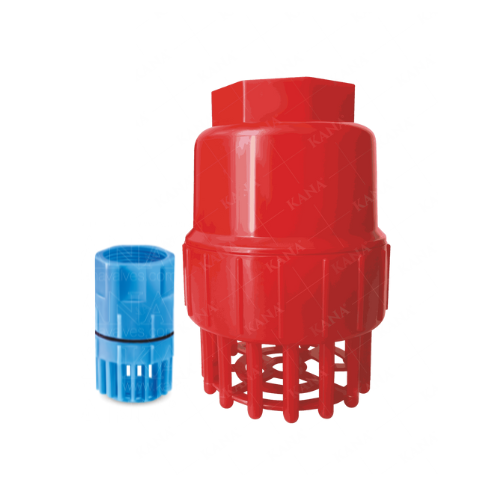

Plastic Foot valves Spring type

Products description

KANA Valves presents a high-performance Threaded Foot Valve- Spring Type engineered for advanced pump protection and efficient flow control in agriculture and industrial applications. Manufactured in Our State of the art manufacturing facility in Gujarat, India. from durable polymer, this robust PP Foot Valve ensures long-lasting performance, corrosion resistance, and reliability in demanding conditions.

Equipped with a protective Mesh Called a Stainer, this Plastic Foot valve prevents unwanted debris and solid particles from entering the pipeline, safeguarding the pump from damage and choking. Unlike conventional designs, this Spring Foot Valve operates through a spring-loaded dual disc mechanism. The rubber washer is securely attached to a disc, which is connected to another disc through a calibrated spring system.

During pump operation, the suction pressure lifts the disc assembly upward against the spring tension, allowing smooth water flow. When the pump stops, the spring force instantly pushes the discs back into position, tightly sealing the passage and preventing backflow. This spring-controlled mechanism ensures faster and more reliable closure compared to gravity-based systems. v

This precision-engineered Threaded PP Foot Valve maintains proper suction line priming, reduces pump load, and enhances overall system efficiency. KANA Valves’ PVC Foot Valves are ideal for irrigation systems, borewells, and industrial water handling applications where consistent performance and quick response are critical.

Designed for superior functionality, this valve delivers dependable non-return action with minimal maintenance and maximum pump protection.

Technical Parameters

SIZE in Inch.	Nominal DIa. (DN) in mm	BSPT Th./in	W in mm	H in mm	D in mm	Quantity / CTN in Piece	Item Code (BSPT end)
½”	20	14	64.4	102.0	25.7	272 PC	RP927
¾”	25	14	64.4	102.0	25.7	272 PC	RP928
1”	32	11	64.4	102.0	25.7	272 PC	RP929
1 ¼”	40	11	79.7	113.8	39.5	160 PC	RP930
1 ½	50	11	79.7	113.8	39.5	160 PC	RP931
2”	63	11	100.0	149.0	52.0	73 PC	RP932
2 ½”	75	11	122.0	169.2	69.0	57 PC	RP933
3”	90	11	145.0	208.2	85.9	27 PC	RP934
4”	110	11	180.0	238.0	100.0	18 PC	RP935

Material Specification

NO.	PART	MATERIAL	QTY
A	Stainer	Poly Propylene	1
B	Bolt	M.S	1
C	Spring Carrier	Poly Propylene	1
D	Spring	M.S	1
E	Bracket	Poly Propylene	1
F	Rubber Ring	Nitrile Rubber	1
G	Washer	Nitrile Rubber	1
H	Disc	Poly Propylene	1
I	Nut	M.S	1
J	Body	Poly Propylene	1

Technical datasheet

MATERIAL OF CONSTRUCTION	POLYPROPYLENE
DESIGN	Spring Type
END CONNECTION	BSP Threaded End
SIZE AVAILABILITY	½” TO 4” (DN15 TO DN100)
STANDARD	ISO : 7-1/IS - 8999 / BS -21
HYDRAULIC TEST PRESSURE	PN6

Plastic Ball Valves

Plumbing Pipes & Fittings

Pipe Adhesives

Taps and Faucets

Foot valves & Non-Return Valves

PP Fittings (Suction Hose Fittings)

product specification

Agricultural Irrigation Systems, Water Pumps, and Sump Pumps, Industrial Water Supply Systems, Domestic Water Systems

Kana Valves Pvt. Ltd. To meet the ever-changing demands of customers, we are engaged in offering a quality range of Plastic Foot Valves Spring Type. These valves are manufactured using the best quality raw materials, moreover, these valves comply with the prescribed industry standards, which are used in various industrial applications.

These valves act as a crucial component in preventing the reverse flow of water, ensuring the smooth and efficient operation of pumps. Manufactured from durable, high-grade plastic, these valves are corrosion-resistant and built to withstand harsh environmental conditions, including exposure to chemicals and varying water qualities. The Spring Type Plastic Foot Valve is lightweight yet robust, making it easy to install and maintain.

Applications of Plastic Foot Valves Spring Type

Residentials

Commercials

Agricultural

Irrigation

Biogas Plants

Chemical Industries

Food Processing

Get In Touch

Name

Phone Number

Subject

—Please choose an option—

Message

By clicking on the submit button, I agree to receive a call and/or email from Kana Valves Pvt. Ltd. or its authorised representative(s) as per the calling guidelines avail & also agree to the website’s Terms and Conditions & Data Privacy Notice

Name

Phone Number

Subject

—Please choose an option—

Message

feature and benifits

Low Maintenance

The design and material of the foot valve make it low maintenance, ensuring fewer operational downtimes and cost savings in the long run.

High-Quality Plastic Construction:

Made from durable, corrosion-resistant plastic, the valve is suitable for long-term use in various environments, including harsh chemical and water conditions.

Spring Type Design

The Spring Type design enhances the valve’s efficiency by allowing smooth water flow while preventing the backflow, thus protecting the pump and extending its life.

Lightweight and Easy to Install

The lightweight nature of the valve simplifies installation and handling, reducing labor costs and time. It can easily be fitted into piping systems without additional tools.

Low Pressure Drop

Designed to minimize pressure drop, the valve helps maintain a consistent and efficient flow of water, enhancing the overall performance of the system.

Multiple Size Availability

Available in different sizes to meet various system requirements, ensuring compatibility with a wide range of piping systems.
