To allow quick control flow of water supply in any 2 Direction for Agriculture & irrigation Application.

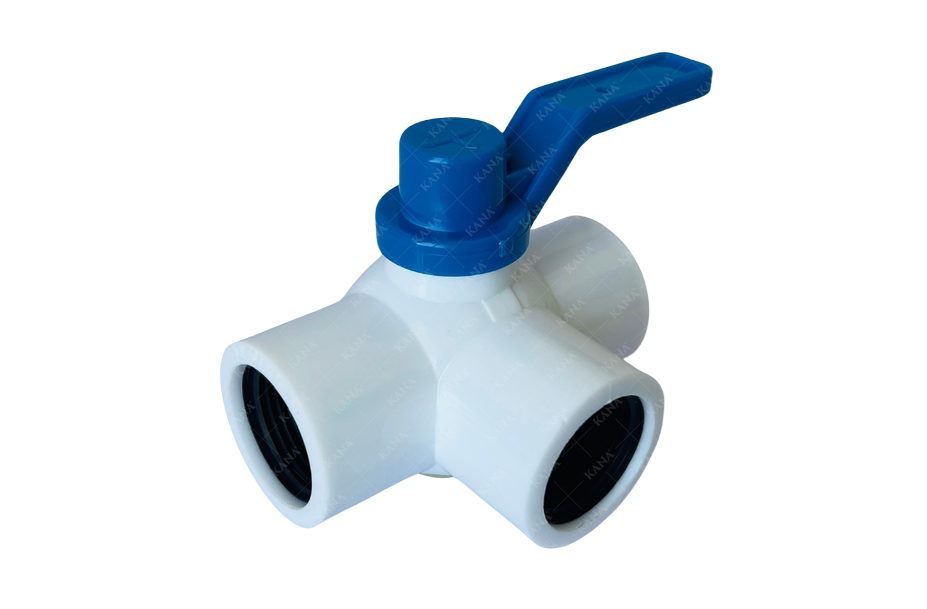

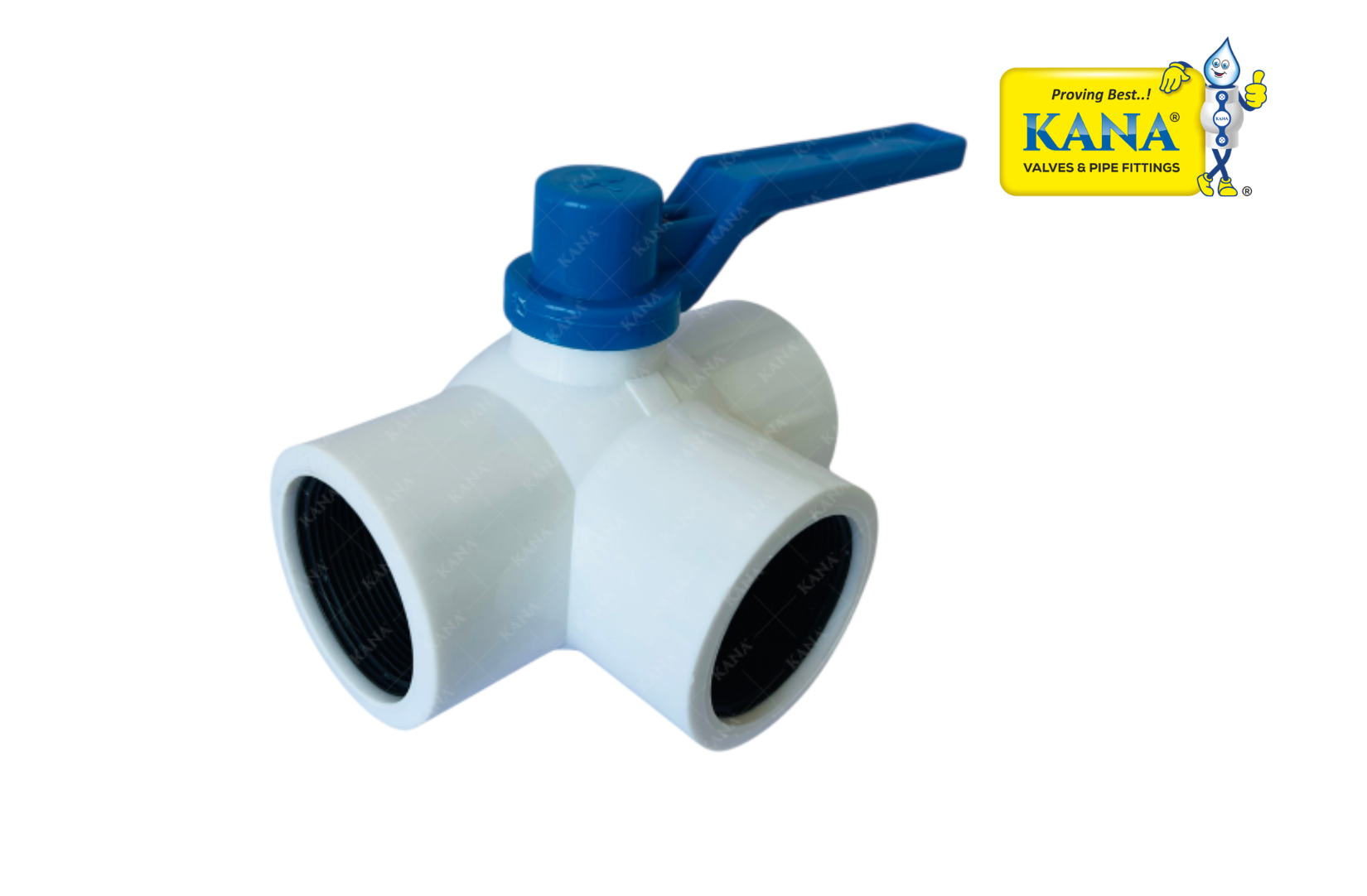

At KANA VALVES PVT. LTD., Ahmedabad, Gujarat (India), we supply high-quality White Three-Way Ball Valves designed for precise and efficient water flow management in agriculture & drip irrigation applications. These Plastic 3 Way Ball Valves are manufactured using premium-grade raw material, ensuring excellent corrosion resistance, durability, and long service life.

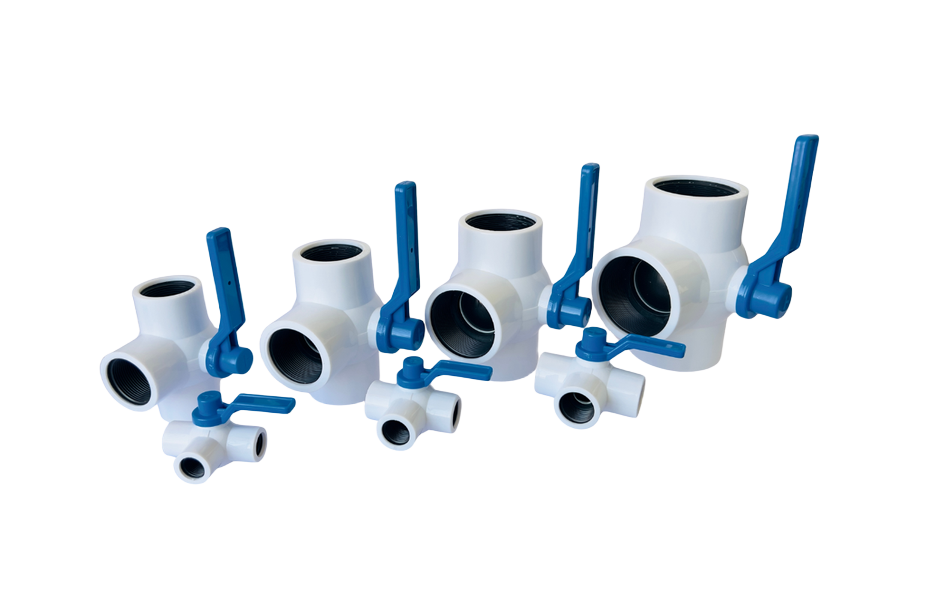

KANA PVC Three Way Ball Valves feature a full-turn ball mechanism that allows smooth flow diversion, mixing, or isolation with minimal pressure loss. Available in multiple sizes like ½ inch to 4 inch (20mm to 110mm) with BSP threaded and solvent socket end connections, these valves are easy to install and compatible with DIN standard piping networks. They deliver leak-proof performance and consistent reliability across applications such as agriculture pipelines, drip & sprinkler irrigation systems, water supply lines, and residential & commercial plumbing.

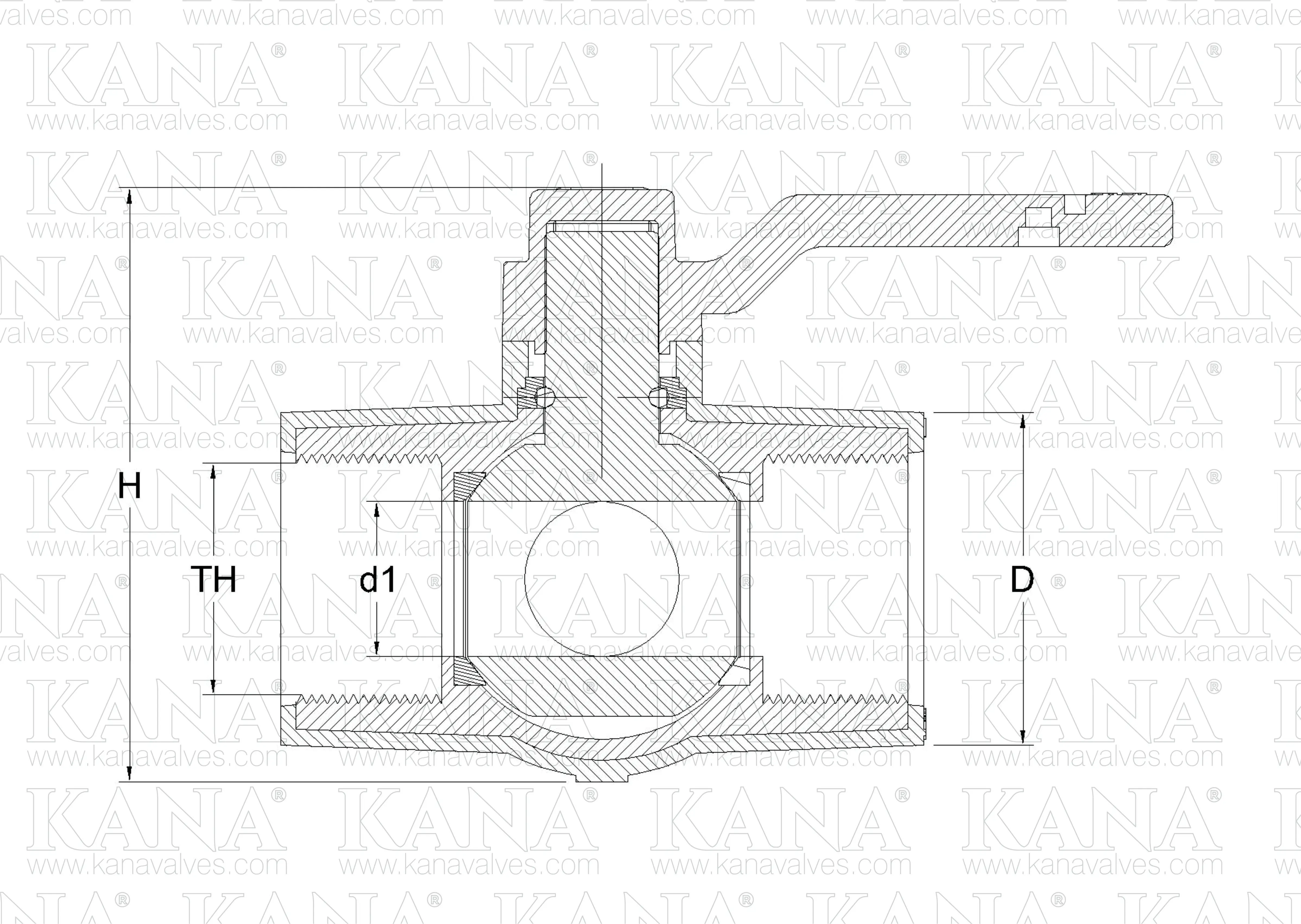

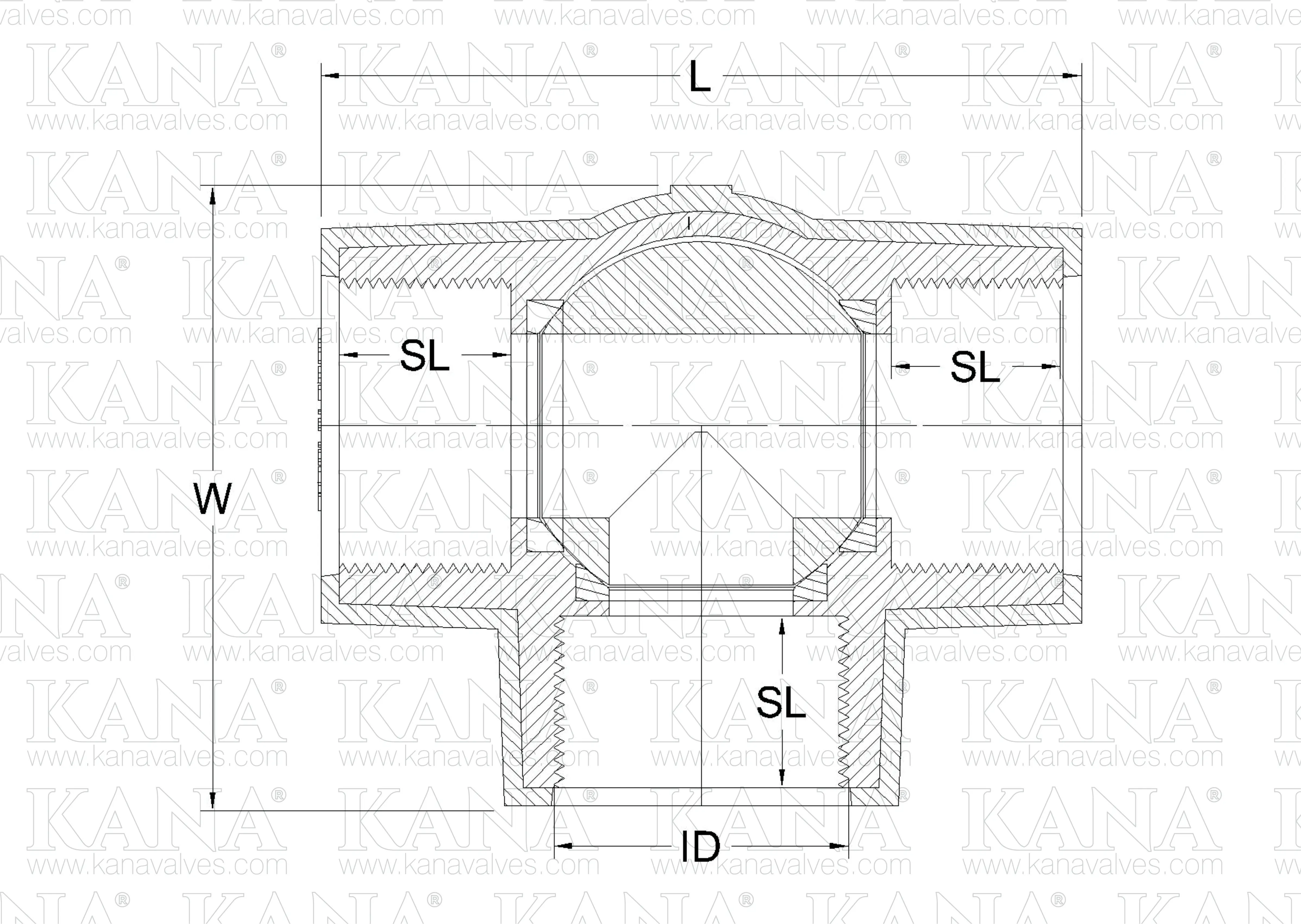

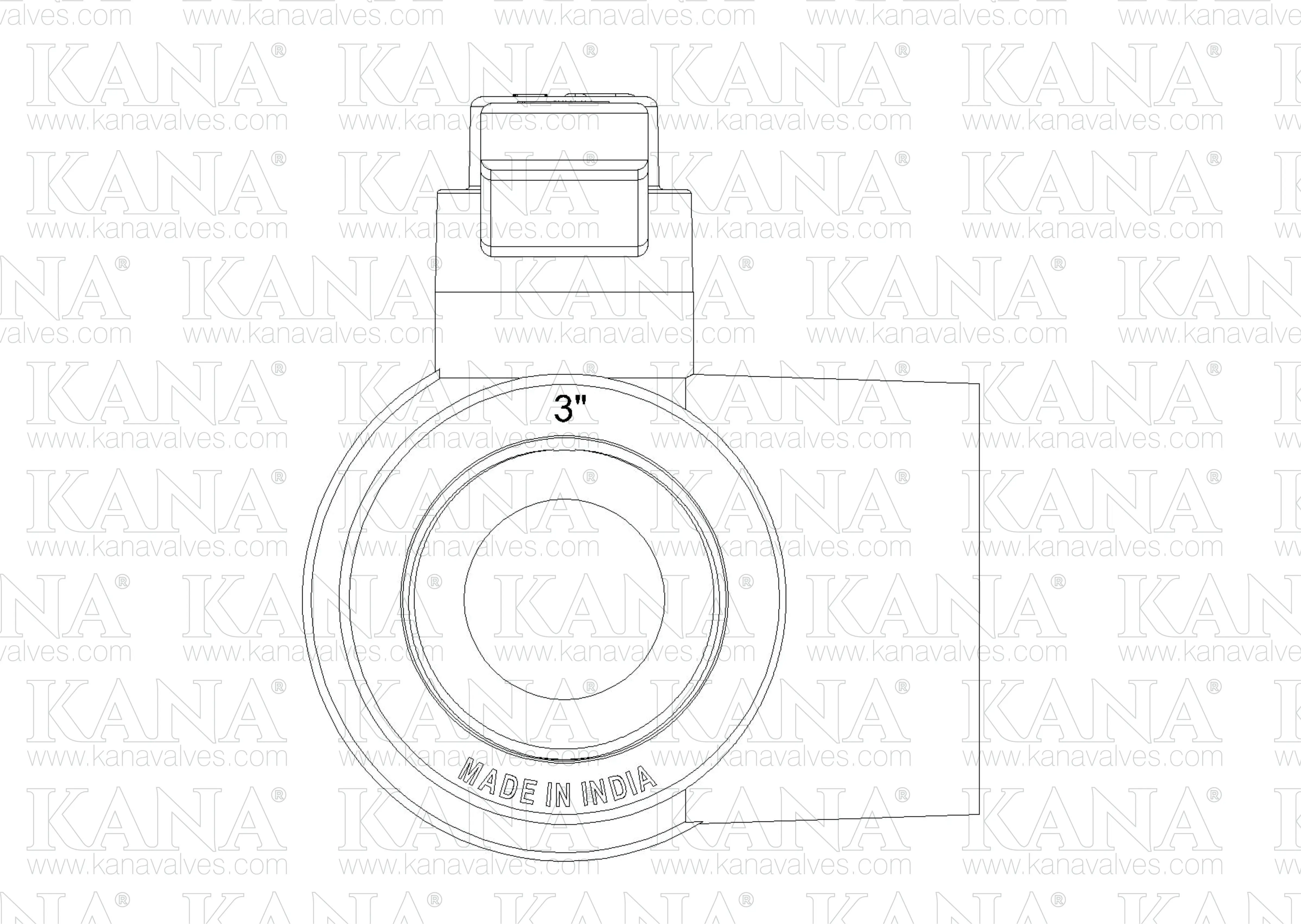

| SIZE in Inch. | Size In mm | ID in mm (DIN) | BSPT Th./in | D in mm | d1 in mm | SL in mm | H in mm | L in mm | W in mm | Item Code (Solvent Socket end) | Item Code (BSPT end) | Qtty. in Piece / CTN Box |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ½” | 20 | 20 | 14 | 31.4 | 13.5 | 22.8 | 71.2 | 84.3 | 66.4 | 3BVWP20 | 3BVWT20 | 280 |
| ¾” | 25 | 25 | 14 | 38.0 | 18.3 | 21.4 | 78.0 | 87.6 | 74.0 | 3BVWP25 | 3BVWT25 | 240 |
| 1” | 32 | 32 | 11 | 44.0 | 21.3 | 25.3 | 89.5 | 103.8 | 82.7 | 3BVWP32 | 3BVWT32 | 200 |
| 1 ¼” | 40 | 40 | 11 | 53.1 | 28.7 | 31.4 | 109.8 | 121.5 | 100.0 | 3BVWP40 | 3BVWT40 | 90 |
| 1 ½ | 50 | 50 | 11 | 61.6 | 33.2 | 37.5 | 118.9 | 137.5 | 108.0 | 3BVWP50 | 3BVWT50 | 75 |
| 2” | 63 | 63 | 11 | 76.5 | 46.0 | 42.3 | 142.0 | 160.0 | 130.7 | 3BVWP63 | 3BVWT63 | 48 |
| 2 ½” | 75 | 75 | 11 | 90.1 | 56.7 | 41.0 | 162.9 | 175.5 | 147.4 | 3BVWP75 | 3BVWT75 | 30 |
| 3” | 90 | 89 | 11 | 107.6 | 70.8 | 47.0 | 185.6 | 202.7 | 172.8 | 3BVWP90 | 3BVWT90 | 24 |
| 4” | 110 | 110 | 11 | 129.0 | 89.4 | 46.9 | 227.0 | 241.4 | 207.7 | 3BVWP110 | 3BVWT110 | 12 |

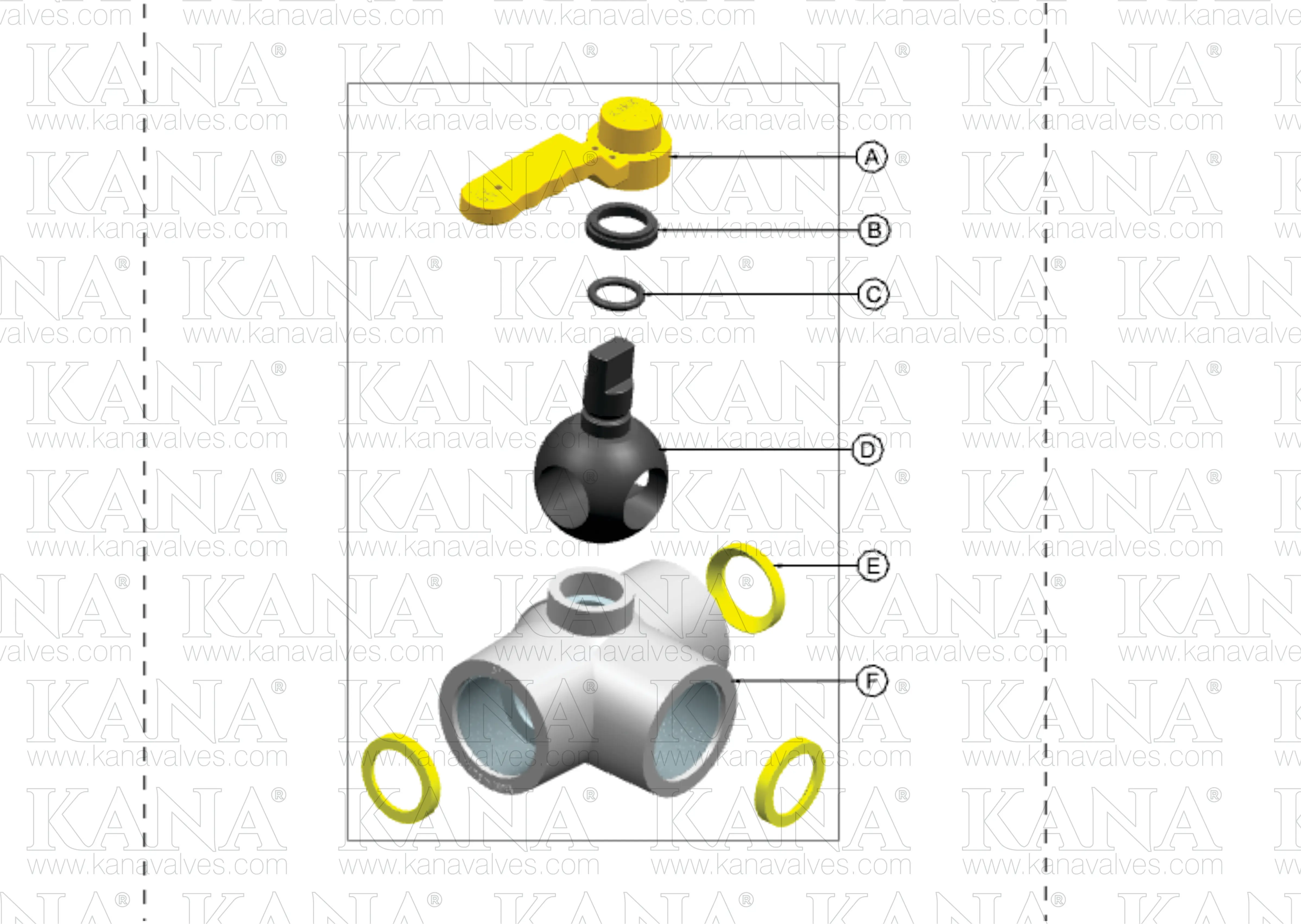

| NO. | PART | MATERIAL | QTY |
|---|---|---|---|
| A | HANDLE | POLYPROPYLENE | 1 |
| B | SEAL | POLYPROPYLENE | 1 |
| C | STEAM “O”RING | NITRILE RUBBER | 1 |
| D | BALL | POLYPROPYLENE | 1 |
| E | SEAT | EPDM | 3 |
| F | BODY | POLYPROPYLENE | 1 |
| MATERIAL OF CONSTRUCTION | POLYPROPYLENE |
| DESIGN | Three Way |
| END CONNECTION | Solvent SOCKET & THREADED |
| CONSTRUCTION | SINGLE BODY (COMPACT) |
| SIZE AVAILABILITY | ½” TO 4” (DN15 TO DN100) |
| STANDARD | SOCKET- (DIN), THREADED- BSP |
| HYDRAULIC TEST PRESSURE | PN6 |
The KANA 3-Way Ball Valve operates using a quarter-turn ball mechanism, which allows water to flow in any of the two directions. By rotating the handle 90°, the valve can divert, mix, or isolate water between pipelines with minimal pressure loss. This design provides smooth, effortless switching and ensures leak-proof performance, making it ideal for agriculture irrigation, drip and sprinkler systems, greenhouse pipelines, and residential or industrial water supply networks.
Allows water to flow in any of the three directions and easily switch flow between any two pipeline sides, providing versatile irrigation and fluid management
Manufactured from high-grade PP, resistant to corrosion, chemicals, fertilizers, and UV exposure, ensuring long-term outdoor performance.
Available from ½″ (20 mm) to 4″ (110 mm) to suit diverse agriculture, drip irrigation, and plumbing systems.
Offered in DIN Standard Solvent Socket (Plain) End and BSP Threaded End for compatibility with standard pipeline networks.
Precision-engineered Ball and seals ensure tight shut-off and reliable operation under varying pressures.
Ergonomic low-torque handle allows effortless quarter-turn operation for quick flow switching.
Strong yet lightweight construction enables easy installation, handling, and maintenance without compromising strength.
Ideal for agriculture irrigation, drip & sprinkler systems, greenhouse water distribution, residential & industrial pipelines, and more.
