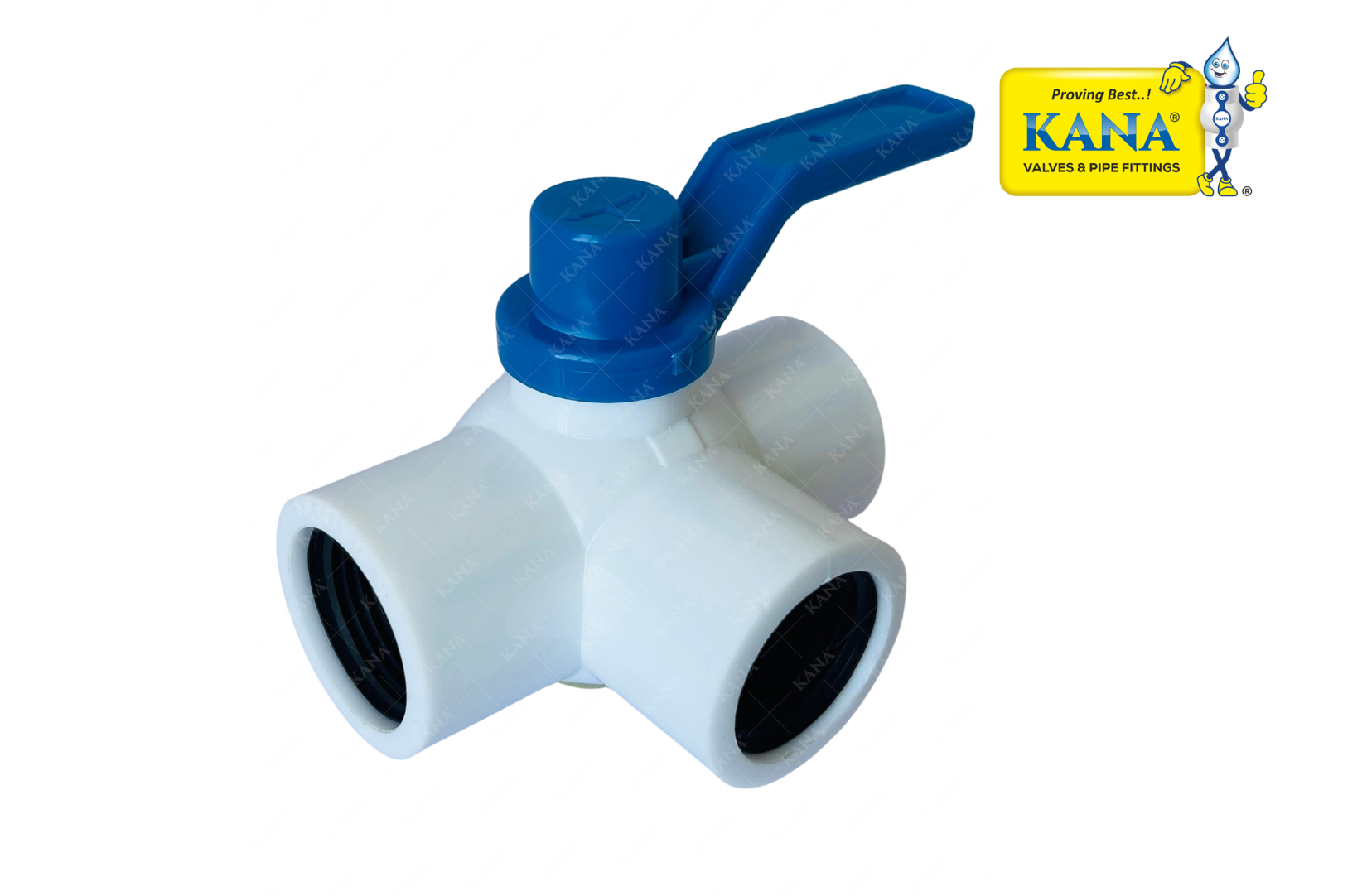

KANA PVC 3-Way Ball Valve with Threaded End (BSPT) is engineered for precise water flow control in agriculture pipelines, drip irrigation systems, sprinkler networks, as well as residential and industrial water supply lines. Designed for easy connection with male threaded fittings, it allows installation with minimal effort while ensuring a leak-proof and reliable performance.
Manufactured from premium-grade polypropylene (PP) raw material, this plastic three way valve is durable, corrosion-resistant, and UV-stable, providing long-term performance even under harsh outdoor conditions. The BSPT threaded end ensures compatibility with standard threaded pipelines and makes installation quick and secure, offering a versatile solution for water distribution in irrigation and agricultural applications.
| SIZE in Inch. | Size In mm | ID in mm(DIN) | BSPT Th./in | D in mm | d1 in mm | SL in mm | H in mm | L in mm | W in mm | Item Code (Solvent Socket end) | Item Code (BSPT end) | Qtty. in Piece / CTN Box |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ½” | 20 | 20 | 14 | 31.4 | 13.5 | 22.8 | 71.2 | 84.3 | 66.4 | 3BVWP20 | 3BVWT20 | 280 |
| ¾” | 25 | 25 | 14 | 38.0 | 18.3 | 21.4 | 78.0 | 87.6 | 74.0 | 3BVWP25 | 3BVWT25 | 240 |
| 1” | 32 | 32 | 11 | 44.0 | 21.3 | 25.3 | 89.5 | 103.8 | 82.7 | 3BVWP32 | 3BVWT32 | 200 |
| 1 ¼” | 40 | 40 | 11 | 53.1 | 28.7 | 31.4 | 109.8 | 121.5 | 100.0 | 3BVWP40 | 3BVWT40 | 90 |
| 1 ½ | 50 | 50 | 11 | 61.6 | 33.2 | 37.5 | 118.9 | 137.5 | 108.0 | 3BVWP50 | 3BVWT50 | 75 |
| 2” | 63 | 63 | 11 | 76.5 | 46.0 | 42.3 | 142.0 | 160.0 | 130.7 | 3BVWP63 | 3BVWT63 | 48 |
| 2 ½” | 75 | 75 | 11 | 90.1 | 56.7 | 41.0 | 162.9 | 175.5 | 147.4 | 3BVWP75 | 3BVWT75 | 30 |
| 3” | 90 | 89 | 11 | 107.6 | 70.8 | 47.0 | 185.6 | 202.7 | 172.8 | 3BVWP90 | 3BVWT90 | 24 |
| 4” | 110 | 110 | 11 | 129.0 | 89.4 | 46.9 | 227.0 | 241.4 | 207.7 | 3BVWP110 | 3BVWT110 | 12 |
| NO. | PART | MATERIAL | QTY |
|---|---|---|---|
| A | HANDLE | POLYPROPYLENE | 1 |
| B | SEAL | POLYPROPYLENE | 1 |
| C | STEAM “O”RING | NITRILE RUBBER | 1 |
| D | BALL | POLYPROPYLENE | 1 |
| E | SEAT | EPDM | 3 |
| F | BODY | POLYPROPYLENE | 1 |
| MATERIAL OF CONSTRUCTION | POLYPROPYLENE |
| DESIGN | Three Way |
| END CONNECTION | Solvent SOCKET & THREADED |
| CONSTRUCTION | SINGLE BODY (COMPACT) |
| SIZE AVAILABILITY | ½” TO 4” (DN15 TO DN100) |
| STANDARD | SOCKET- (DIN), THREADED- BSP |
| HYDRAULIC TEST PRESSURE | PN6 |
The KANA 3-Way Ball Valve operates using a quarter-turn ball mechanism, which allows water to flow in any of the two directions. By rotating the handle 90°, the valve can divert, mix, or isolate water between pipelines with minimal pressure loss. This design provides smooth, effortless switching and ensures leak-proof performance, making it ideal for agriculture irrigation, drip and sprinkler systems, greenhouse pipelines, and residential or industrial water supply networks.
Divert or mix water flow between any two pipelines effortlessly.
Resistant to corrosion, chemicals, fertilizers, and UV exposure.
Ensures fast, secure, and leak-proof installation.
Ergonomic handle allows low-torque quarter-turn operation.
Available from ½″ (20 mm) to 4″ (110 mm) to suit multiple applications.
Robust design without compromising ease of installation or handling.
Suitable for agriculture irrigation, drip & sprinkler systems, greenhouse pipelines, and residential or industrial water supply.
