CPVC Pipes and Fittings

CPVC is the first choice of material for potable water supply across the world and has been in use across the world for more than 15 years. It is ideal for use in hot and cold water applications in villas and individual homes, residential apartments, office complexes, commercial buildings, hotels, and hospitals.

Pipes

Available Sizes

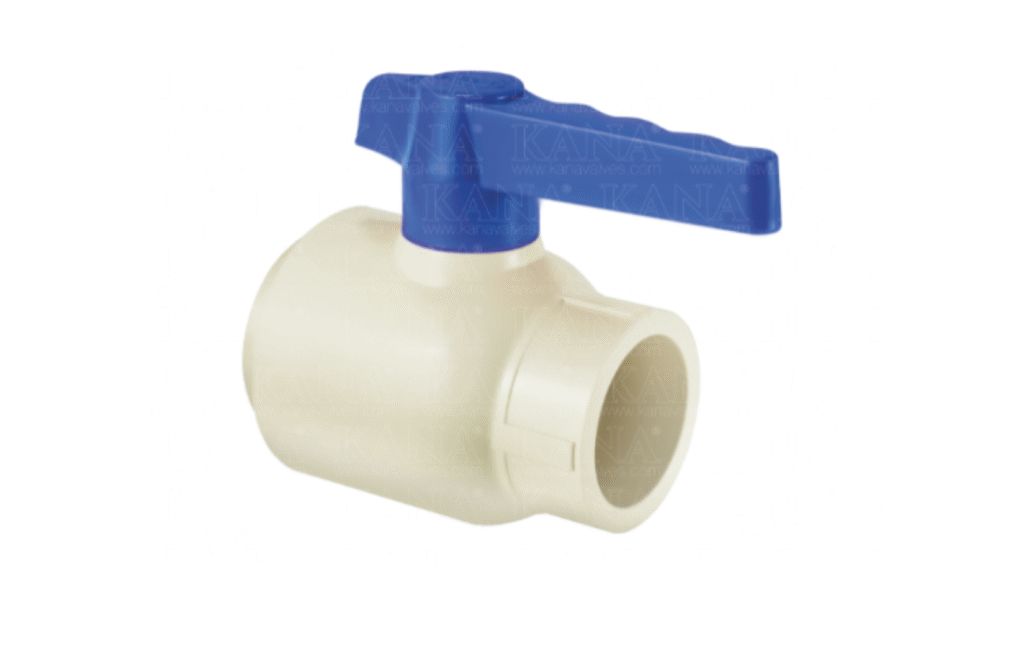

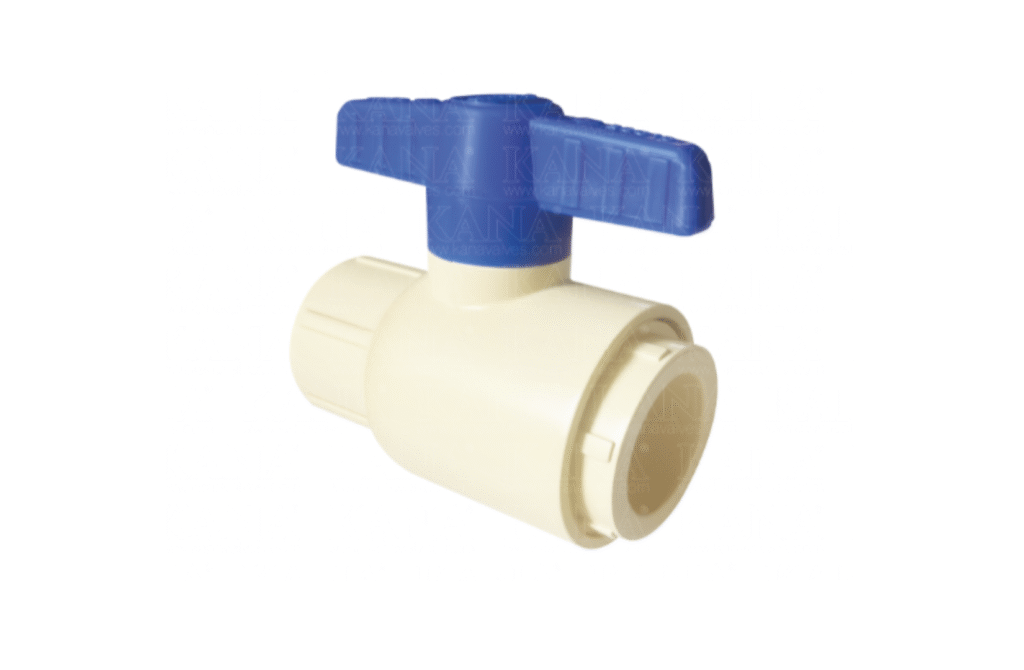

Plastic Ball Valves

Plumbing Pipes & Fittings

Taps and Faucets

Foot valves & Non-Return Valves

Get In Touch

Name

Phone Number

Subject

—Please choose an option—

Message

By clicking on the submit button, I agree to receive a call and/or email from Kana Valves Pvt. Ltd. or its authorised representative(s) as per the calling guidelines avail & also agree to the website’s Terms and Conditions & Data Privacy Notice

Name

Phone Number

Subject

—Please choose an option—

Message

Why should you choose Kana CPVC pipe and fittings?

Safe for drinking water and human health
Exceptional all-weather corrosion resistance
No scaling or pitting maintains the flow
Low thermal expansion
High impact resistance
Consistent and reliable jointing
Very low lifetime ownership cost
CPVC pipes minimize bacterial growth compared to copper, steel, and various other thermoplastic piping systems

Fittings

CPVC BRASS ELBOW 90°

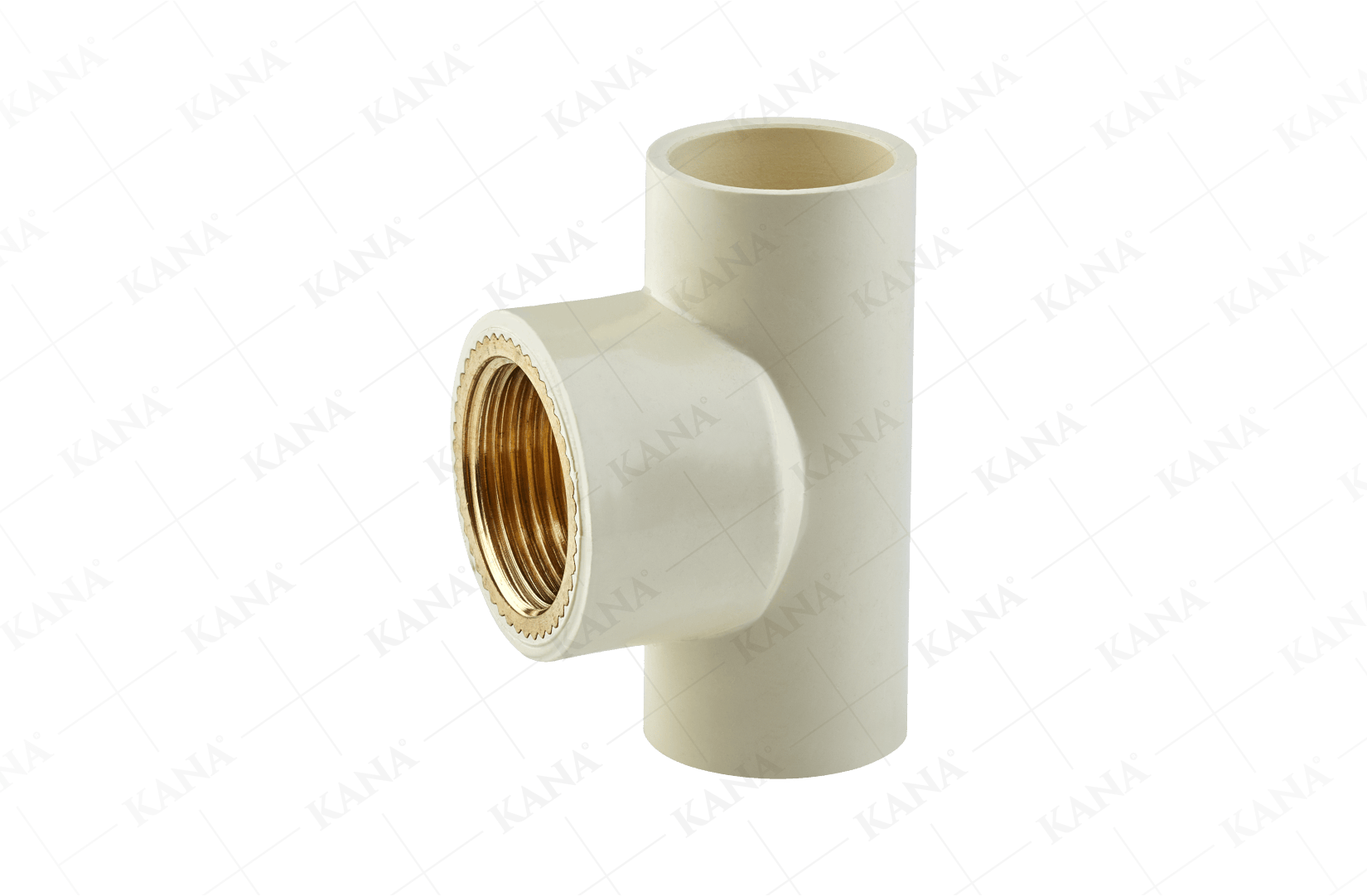

CPVC BRASS TEE

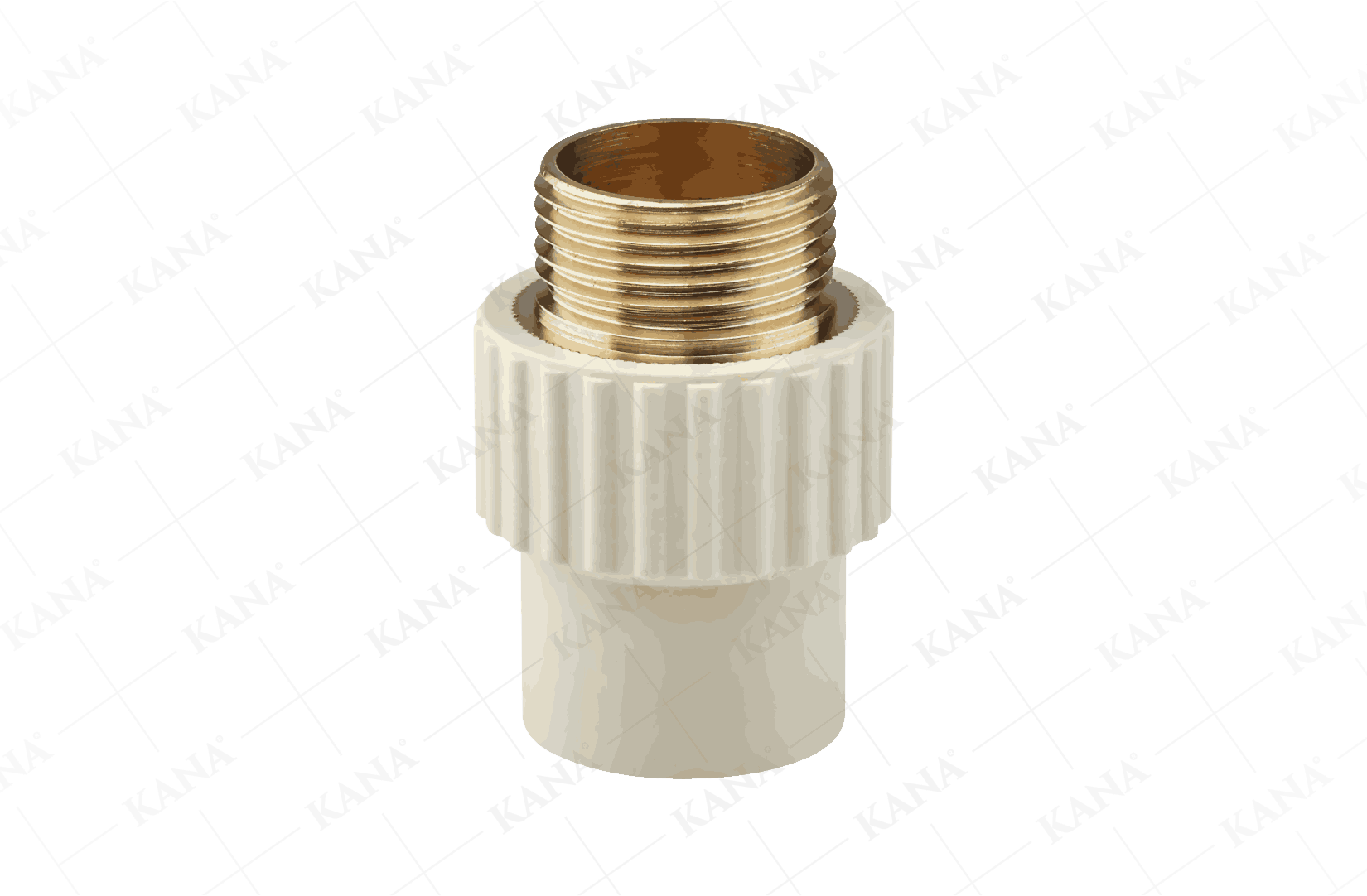

CPVC BRASS M.T.A.

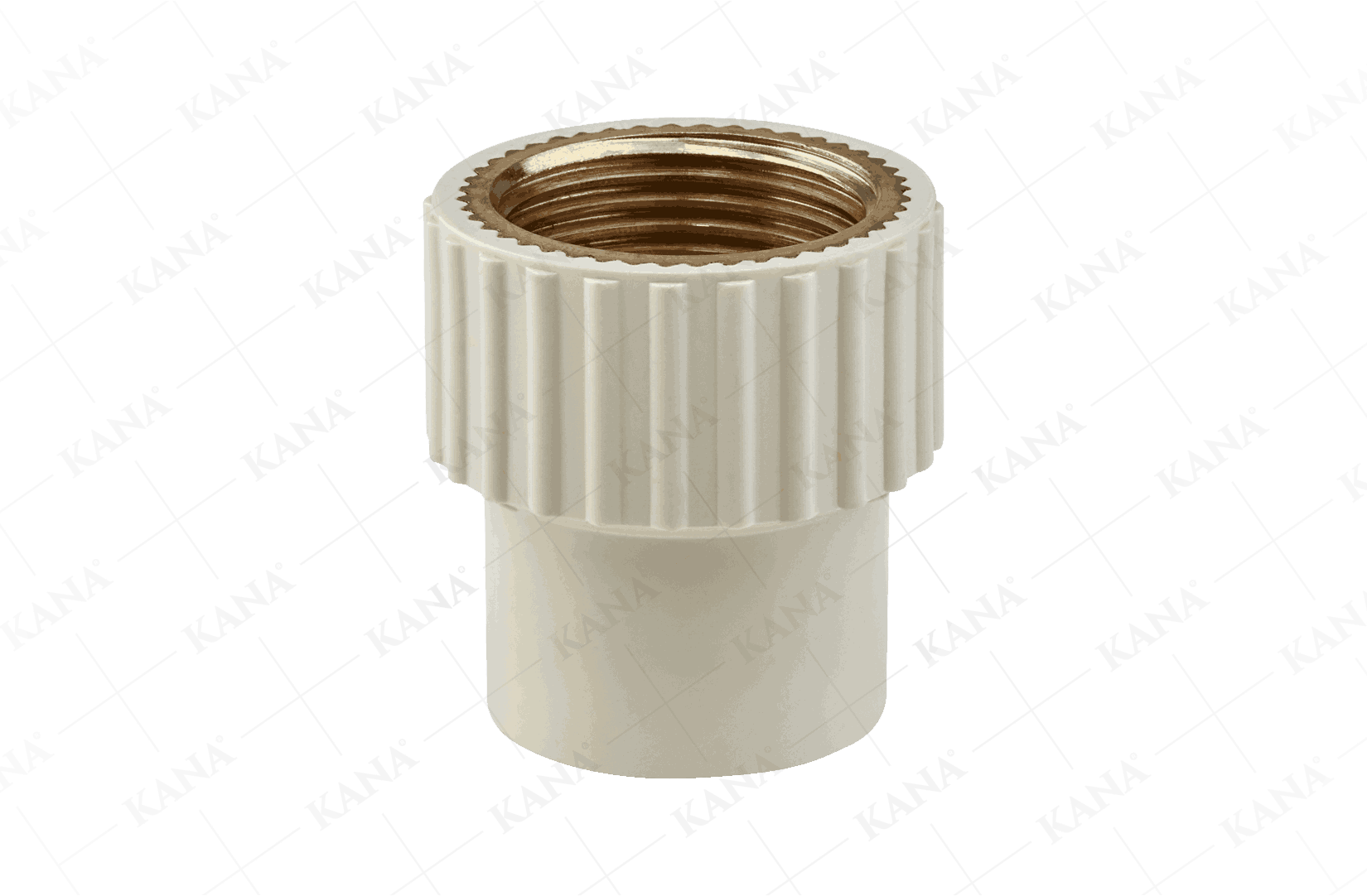

CPVC BRASS F.T.A.

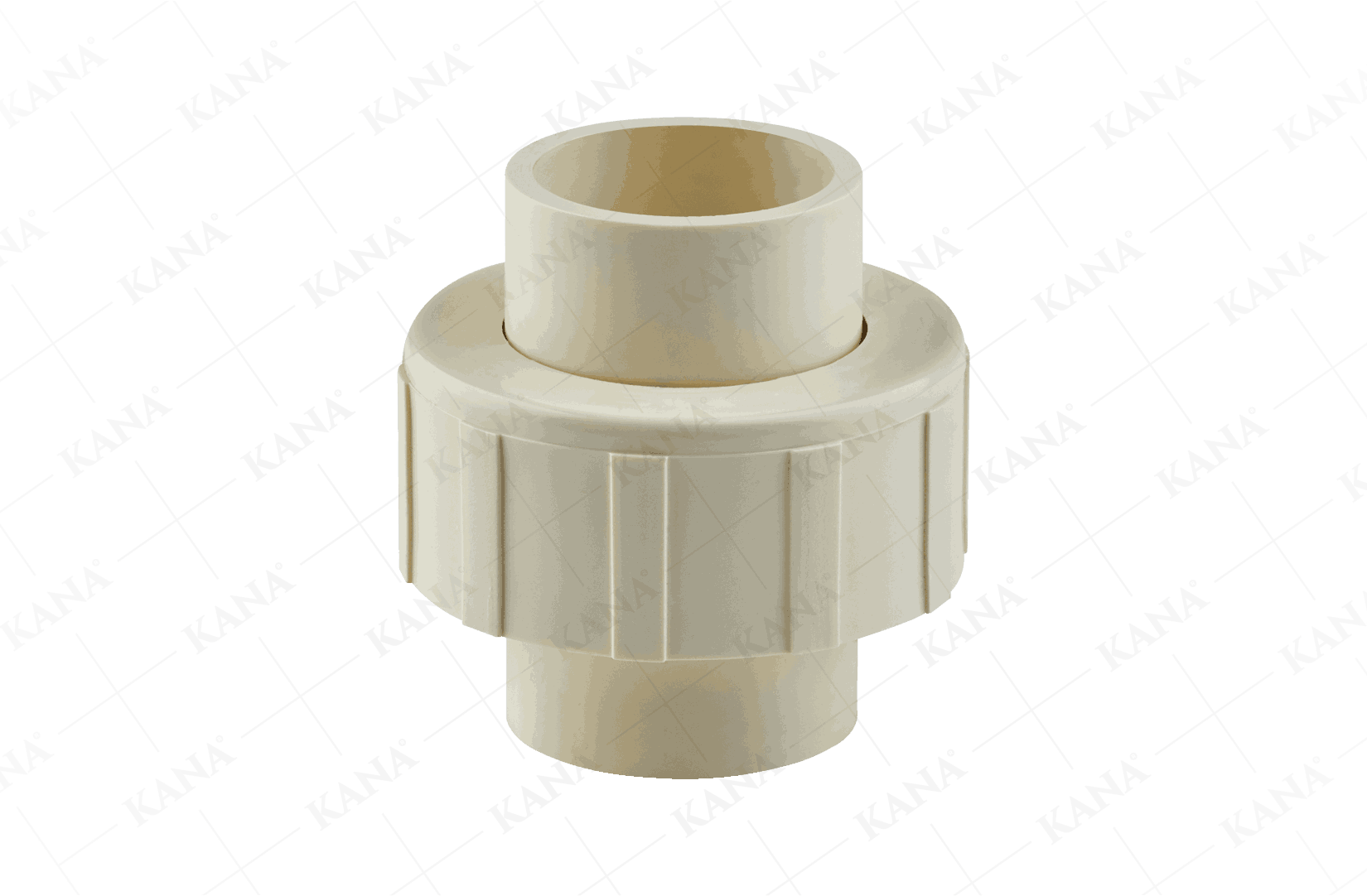

CPVC UNION

CPVC ELBOW 45°

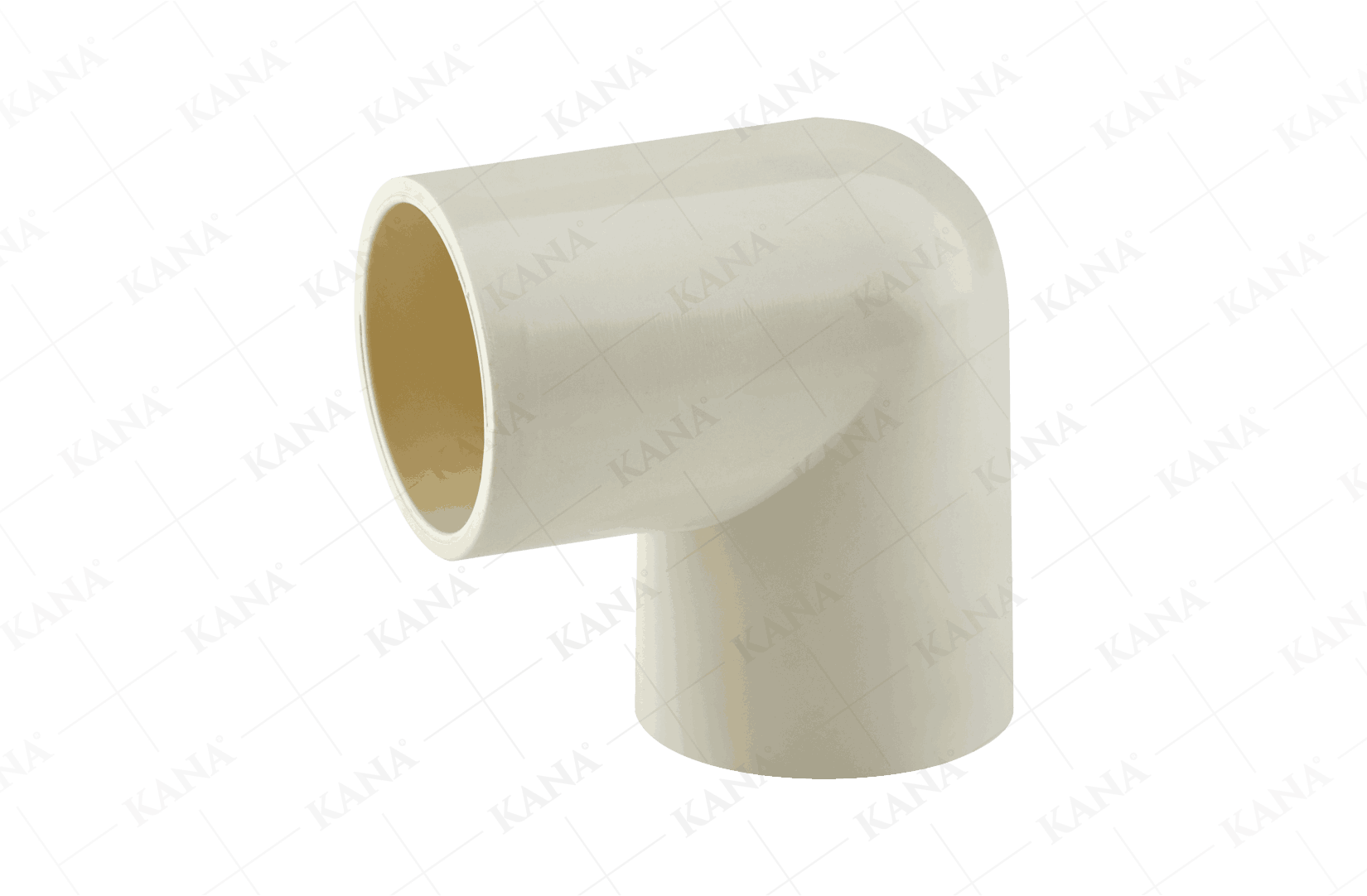

CPVC ELBOW 90°

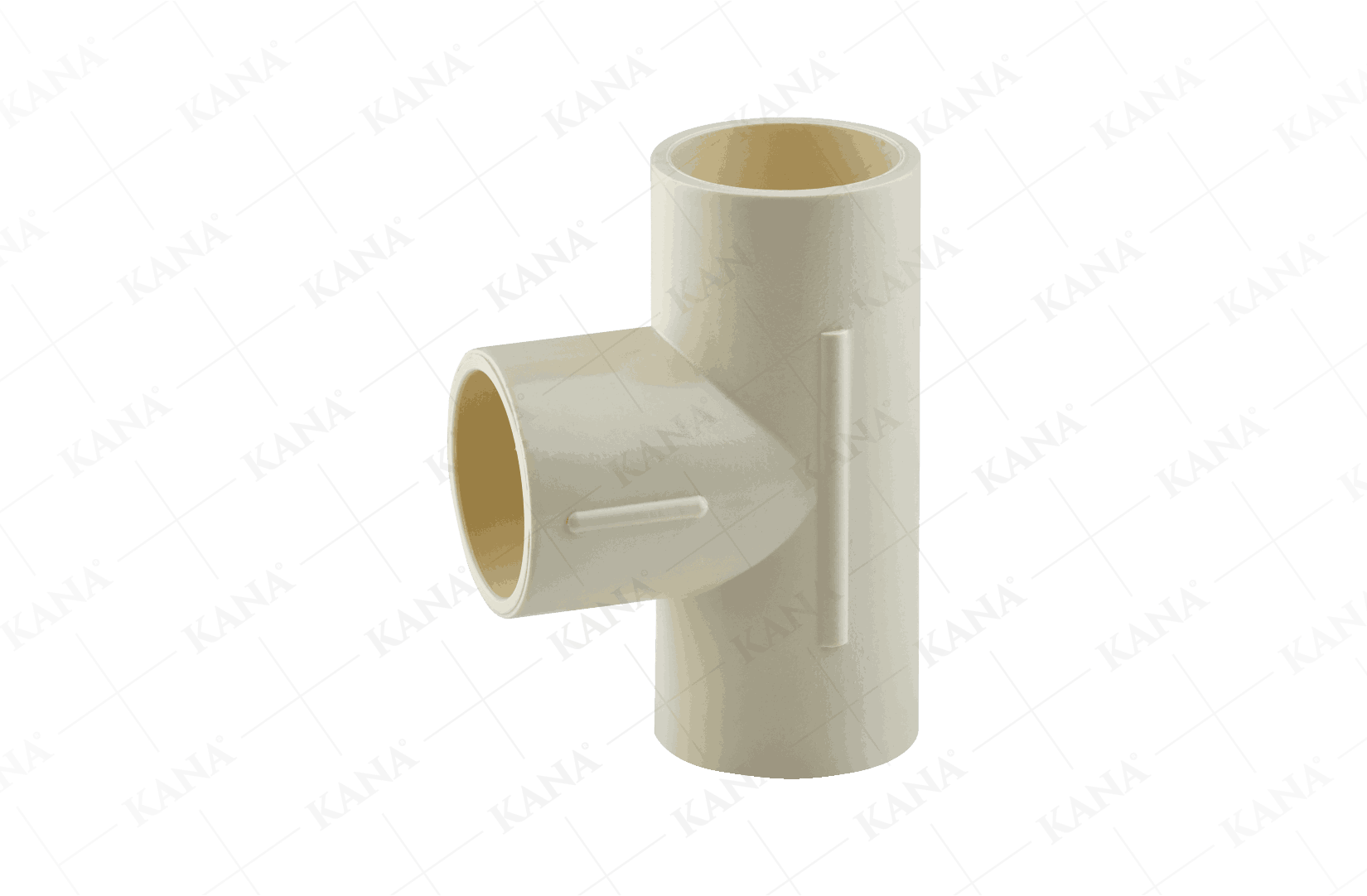

CPVC PLAIN TEE

CPVC PLAIN M.T.A.

CPVC PLAIN F.T.A.

CPVC COUPLER

CPVC END CAP

CPVC REDUCER BUSH

CPVC TANK NIPPLE SOCKET

CPVC TANK NIPPLE THREADED

CPVC CONVERTOR BUSH

Applications of CPVC Pipes and Fittings

Residentials

Commercials

Agricultural

Irrigation

Biogas Plants

Chemical Industries

Food Processing

Standards

CPVC PIPES			CPVC FITTINGS
Class of Pipe	Standard	Sizes Available	Class of Fitting	Standard	Sizes Available
Class-1/SDR-11	IS:15778:2007 ASTM D 2846	1/2″ – 2″	SDR-11	ASTM D 2846	1/2″ – 2″
Class-2/SDR-13.5	IS:15778:2007 ASTM D 2846	1/2″ – 2″	Up Coming.....	Up Coming.....	Up Coming.....
SCH-40	ASTM F 441	2 1/2″ – 4″	Up Coming.....	Up Coming.....	Up Coming.....

Technical Specification

Nominal Size mm(inch)		SDR 11
			Wall Thickness(mm)
	Mean Outside Diameter (mm)	Tolerance	Pressure Rating (Kg/cm2)
15(1/2″)	15.9	+/-0.1	1.7	2.2
20(3/4″)	22.2	+/-0.1	2	2.5
25(1″)	28.6	+/-0.1	2.6	3.1
32(1-1/4″)	34.9	+/-0.1	3.2	3.7
40(1-1/2″)	41.3	+/-0.1	3.8	4.3
50(2″)	54	+/-0.1	4.9	5.5
			28.1	6.9
			27°C	82°C
			Min.	Max.

Nominal Size mm(inch)	SDR 13.5		SDR 13.5
			27°C	82°C
		22.2	5.6
		Wall Thickness(mm)
		Min.	Max.
15(1/2″)	15.9	+/-0.1	1.4	1.9
20(3/4″)	22.2	+/-0.1	1.7	2.2
25(1″)	28.6	+/-0.1	2.1	2.6
32(1-1/4″)	34.9	+/-0.1	2.6	3.1
40(1-1/2″)	41.3	+/-0.1	3.1	3.6
50(2″)	54	+/-0.1	4	4.6
50(2″)	Mean Outside Diameter (mm)	Tolerance	Pressure Rating (Kg/cm2)

Nominal Size mm(inch)	Schedule 40
	Mean Outside Diameter (mm)	Tolerance	Wall Thickness (mm)		Pressure Rating at 23°C (Kg/cm2)
	Mean Outside Diameter (mm)	Tolerance	Min.	Max.	Pressure Rating at 23°C (Kg/cm2)
65(2-1/2″)	73	+/-0.18	5.16	5.77	21.09
80(3″)	88.9	+/-0.20	5.49	6.15	18.27
100(4″)	114.3	+/-0.23	6.02	6.73	15.5
